Mobile Patient Lifts
Wizemed PL350 Patient Lift
Designed for caregivers and larger users requiring safe, stable transfer support, the PL350 Patient Lift features a reinforced structure with a 396lb load capacity for reliable performance in home and long-term care settings. Its ultra-low 3.7'' base fits easily under most beds, enabling smooth transfers in limited spaces. The foldable frame allows compact storage and easy transport, while quick assembly or disassembly can be completed by one person in about three minutes. A removable high-capacity battery supports convenient charging and extended use. With smooth, intuitive controls, the PL350 ensures efficient, comfortable lifting for both users and caregivers.
Safe and stable lifting for heavier users
Designed to provide reliable transfer support for larger users, reducing physical strain and improving safety for caregivers.
Built for daily care in space-limited environments

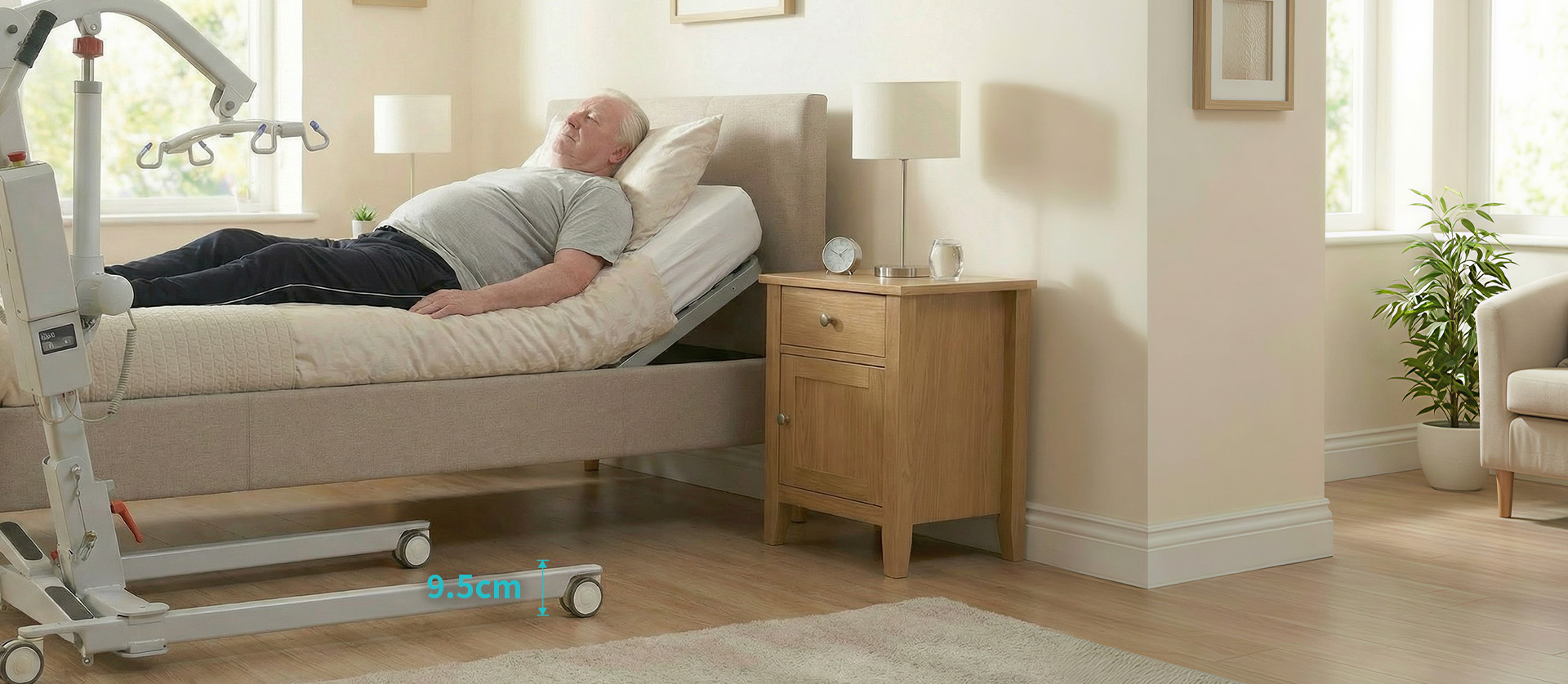

Suitable for home care and long-term care settings, with an ultra-low 2.9'' base that moves easily under most beds.
High load capacity with easy handling

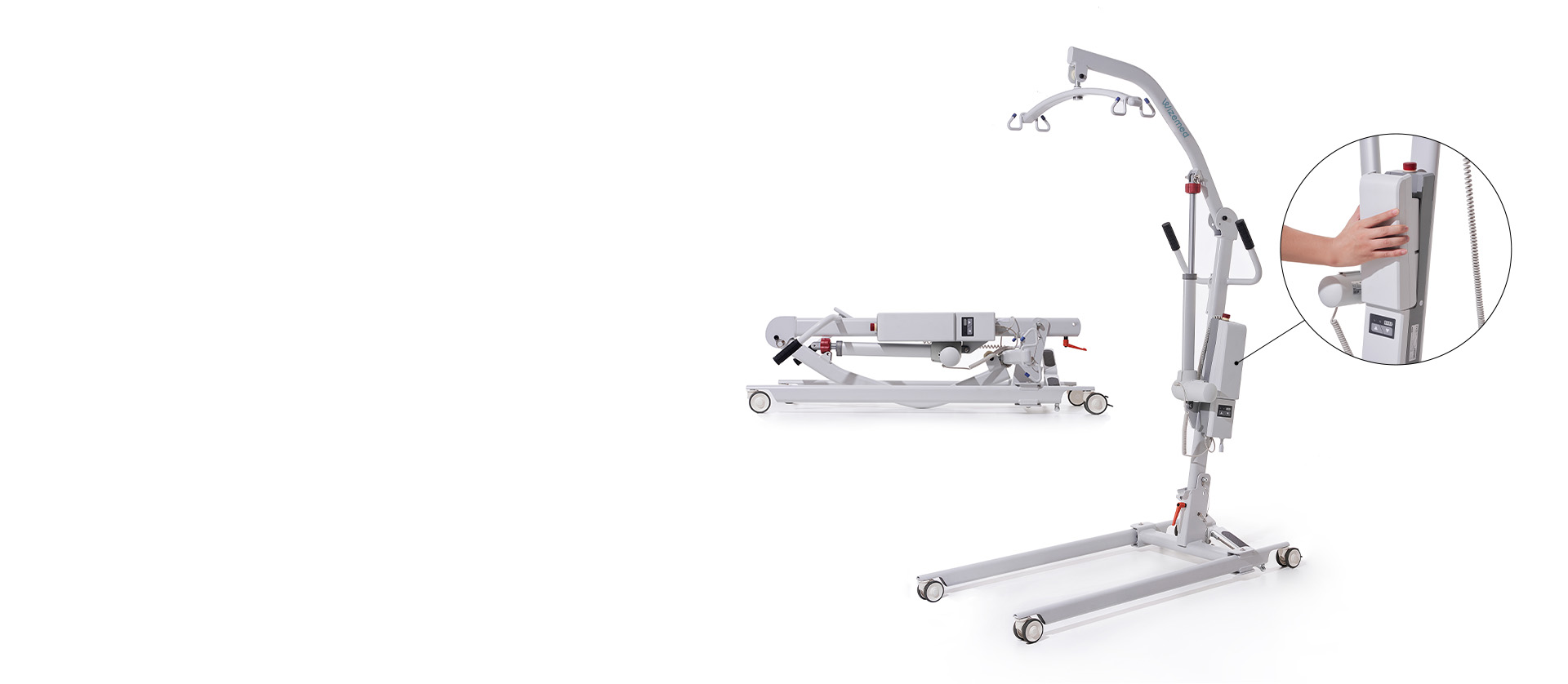

Supports up to 396lb. The foldable frame enables compact storage, while quick assembly and disassembly (≈3 minutes) allow fast setup.
A removable high-capacity battery ensures convenient charging and extended daily operation.

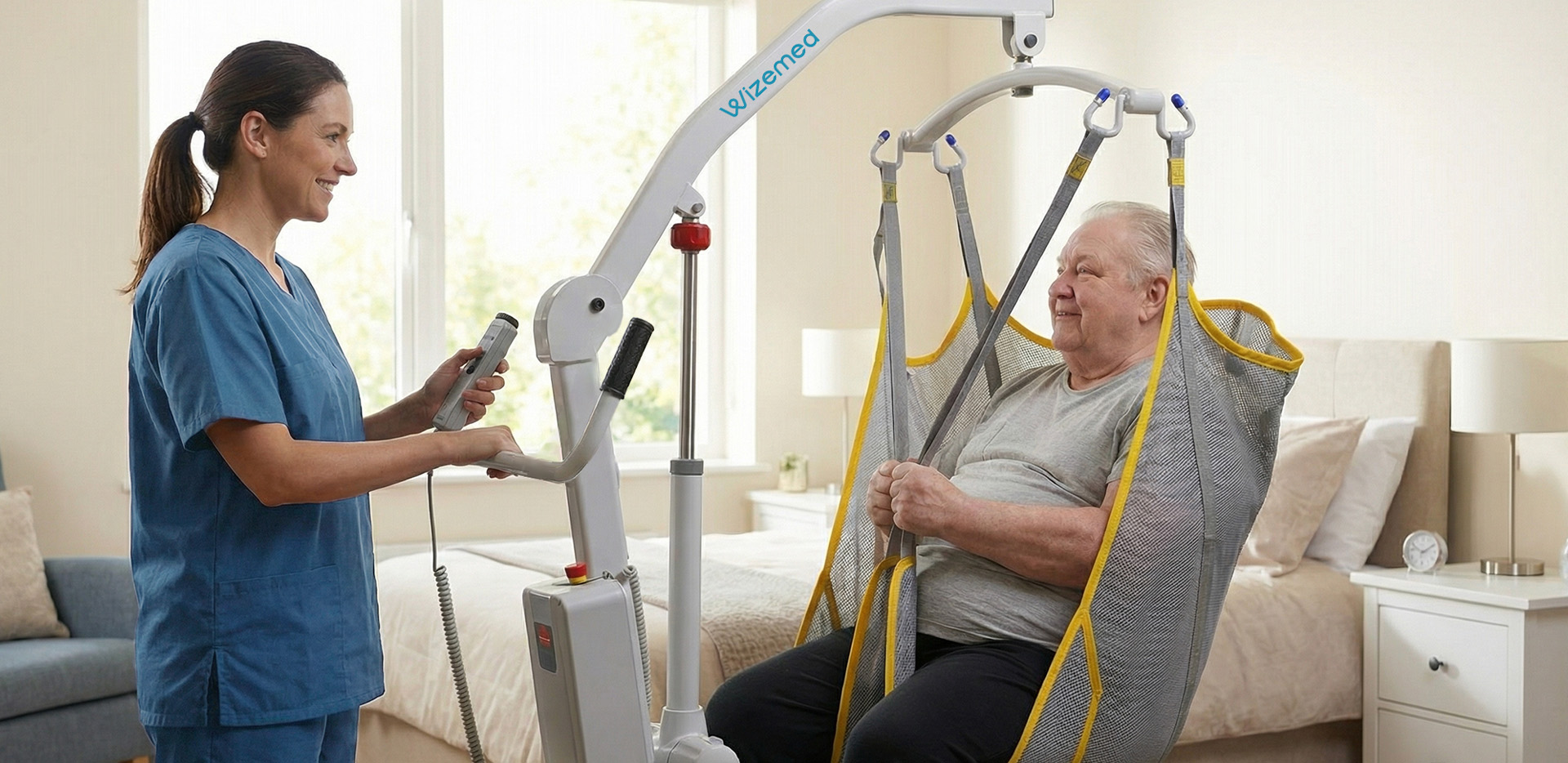

Reinforced structure with caregiver-friendly controls
Built with a reinforced frame for long-term durability. Smooth, precise controls ensure efficient and comfortable lifting for both users and caregivers.
Specifications & Downloads
Technical Data
| Max. Safe Load | 180kg / 28.3st / 396lb
|
| Lifter Weight (with spreader bar and battery) | 37kg / 5.8st / 81lb |
| Lifting Height Range(floor to sling bar) | 545-1685mm / 21.4-66.3'' |
| Leg clearance (floor to top of legs) | 95mm / 3.7'' |
| Legs Length | 1200mm / 47.2'' |
| Internal Width Legs Closed | 550mm / 21.6''
|
| Internal Width Legs Open | 1080mm / 42.5'' |
Lifting Stroke
| 1140mm / 44.8''
|
| Lifting Speed(80kg load) | 26.1mm/s |
| Lifting cycles per charge (80 kg load) | 96 times |
| Dimensions(unfolded): L*W*H | 1260*640*1325mm / 50*25.1*52.1''
|
| Dimensions(folded): l*W*h | 1200*640*400mm / 47.2*25.1*15.7'' |
| Turning Diameter | 1350mm / 53.1''
|
| Front Castor Diameter | 75mm / 2.95'' |
| Rear Castor Diameter(with brake) | 75mm / 2.95'' |
